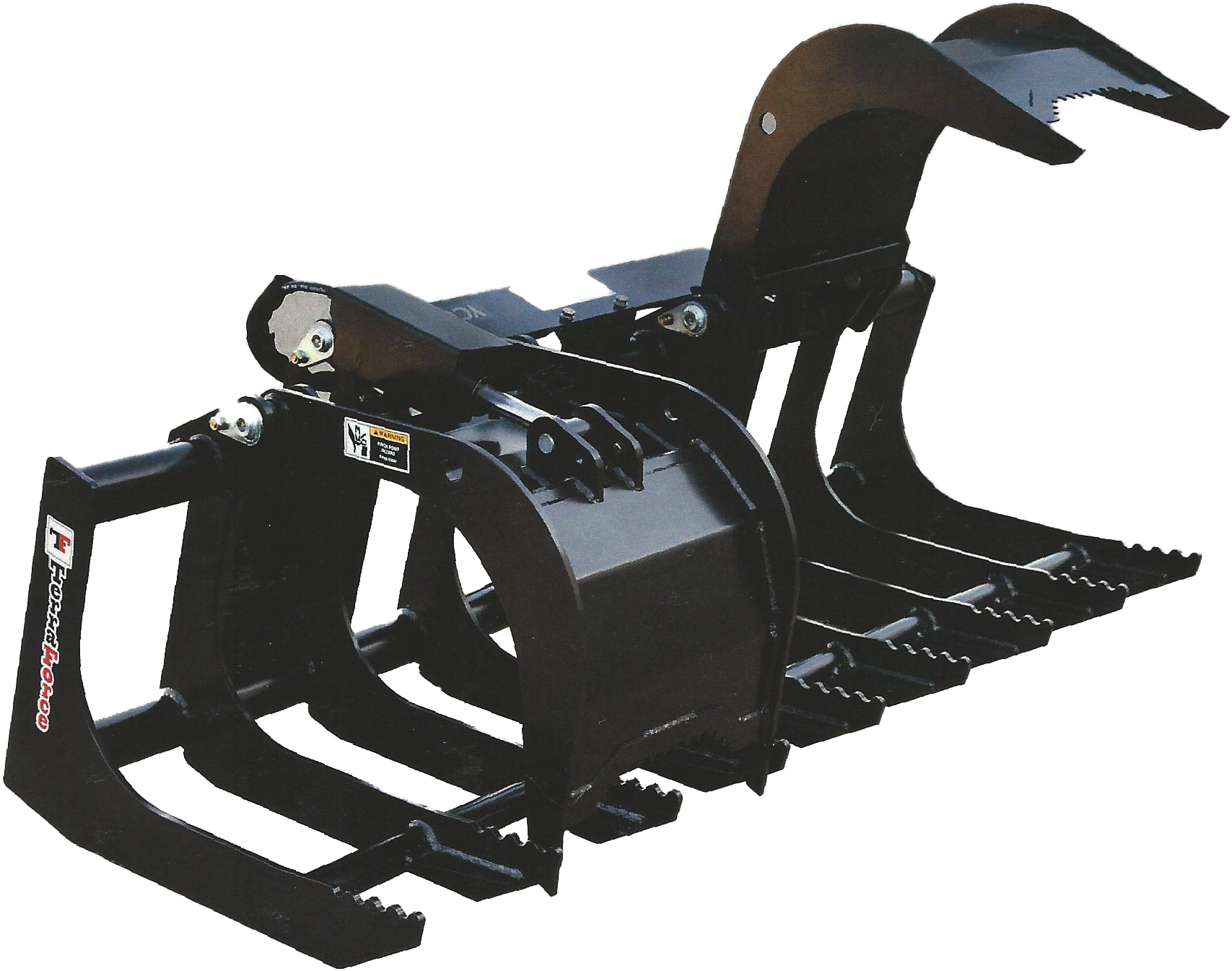

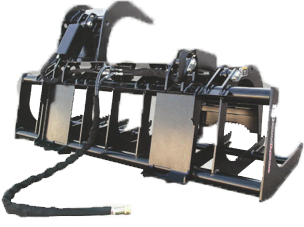

서브페이지 헤더영역 - ROOT GRAPPLE YCG 060 / YCG 066 / YCG 072 MODEL
YOUNGJIN ROTARY
PRODUCT
Hard and robust work performance
Feature of product
- Designed for compact tractor loaders up to 50 horse power
- Maximum grapple clamping force 1,500lbs@2,000psi
- 1/2“AG coupler
- Laser cut for precision
Specification
Units : Inch, Lbs, Ea
| Model | YCG 060 | YCG 066 | YCG 072 |
|---|---|---|---|
| Overall Width(A) | 60 | 66 | 7 |
| Overall Depth(B) | 33 | 33 | 33 |
| Overall Height(C) -Grapple Closed | 25 | 25 | 25 |
| Overall Height(E) -Grapple opened | 41 | 41 | 41 |
| Max. Tooth Opening(D) | 36 | 36 | 36 |
| Number of Teeth | 8 | 9 | 9 |
| Cylinders | 2Pcs | 2Pcs | 2Pcs |
| Operating Weight | 485Ibs | 509Ibs | 525Ibs |
※ Specifications, designs and dimensions are subject to change without prior notice
