Robustness and robustness
at the same time
Feature of product

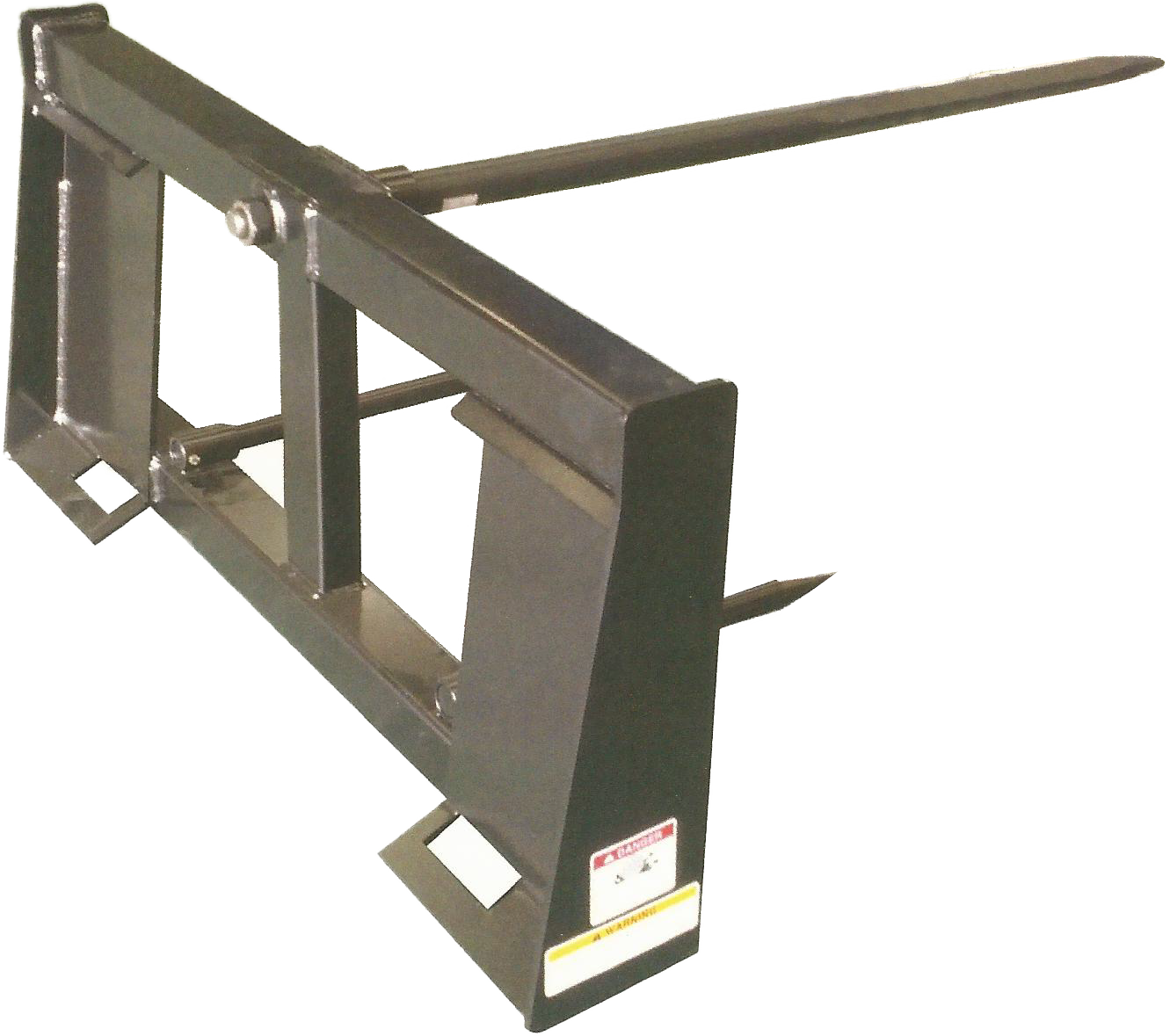

Single bale spear model features
- Skid steer quick attach system
- Spear capacity : 3,500 lbs at 23-1/2“from frame
- 42-1/2“usable spear length
- Spear size : 1.78“00 X 49-1/4” Bale open with nut
- Replaceable forged spear

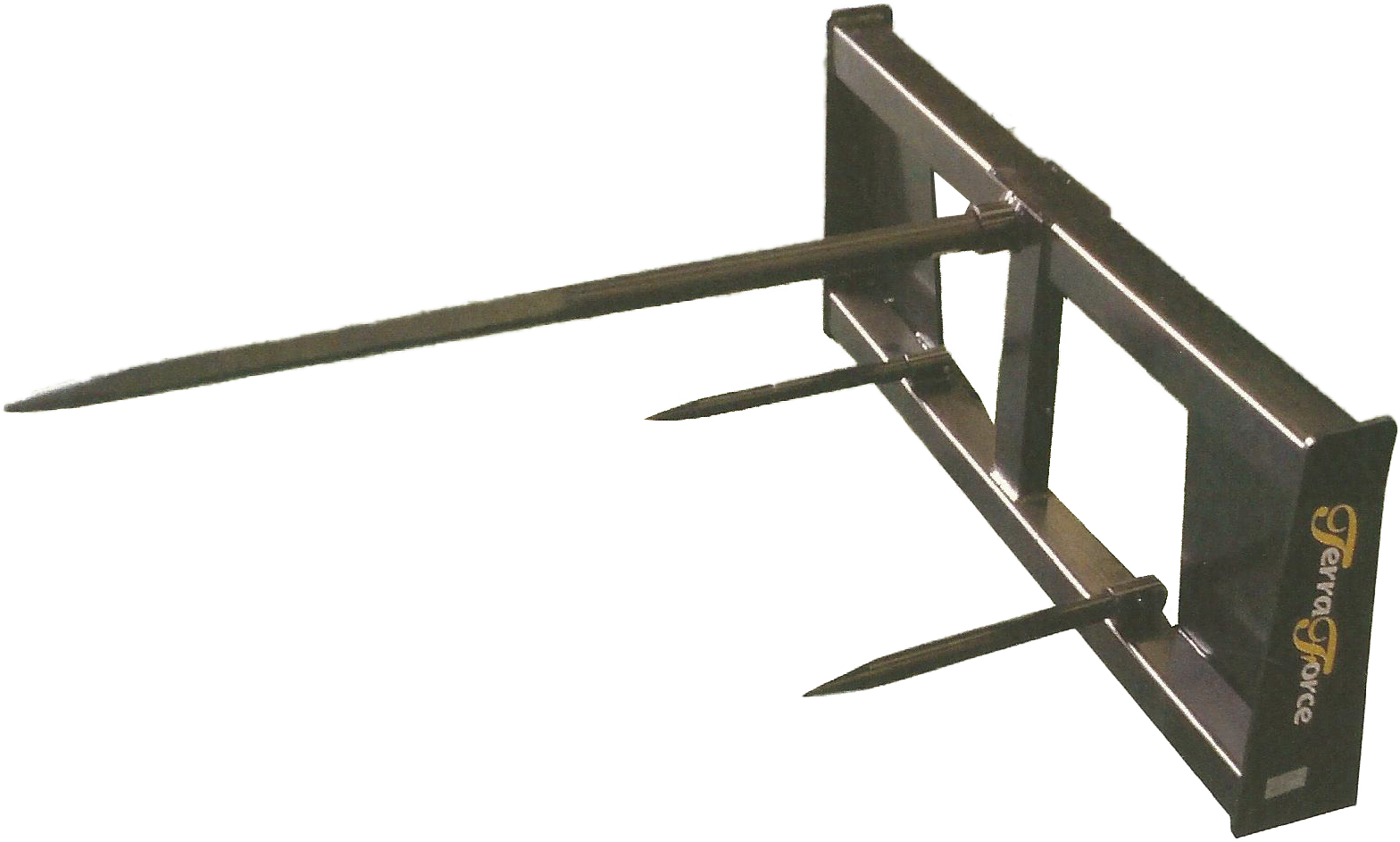

Double bale spear model features
- Skid steer quick attach system
- Spear capacity : 4,000 lbs at 23-1/2“from frame
- 42-1/2“usable spear length
- Spear size : 1.78“00 X 49-1/4” Bale open with nut
- Replaceable forged spear
Specification
| Model | Tine Length(in) | Fork Lift Capacity (lbs) | Weigth (lbs) | Remark |
|---|---|---|---|---|
| BP-100 | 49-1/4 | 3,500 | 145 | Single Type |
| BP-200 | 49-1/4 | 4,000 | 187 | Double Type |
※ Specifications, designs and dimensions are subject to change without prior notice
