Hard and robust work performance
Feature of product
- Skid steer loader and agricultural tractor loader : 51-150 horse power
- Bottom times : 1/2“steel
- Lid times : 3/4“steel
- Maximum grapple clamping force : 3,000lbs@2,000psi
- Flat base 1/2“quick coupler
Specification
Units : Inch, Lbs, Ea

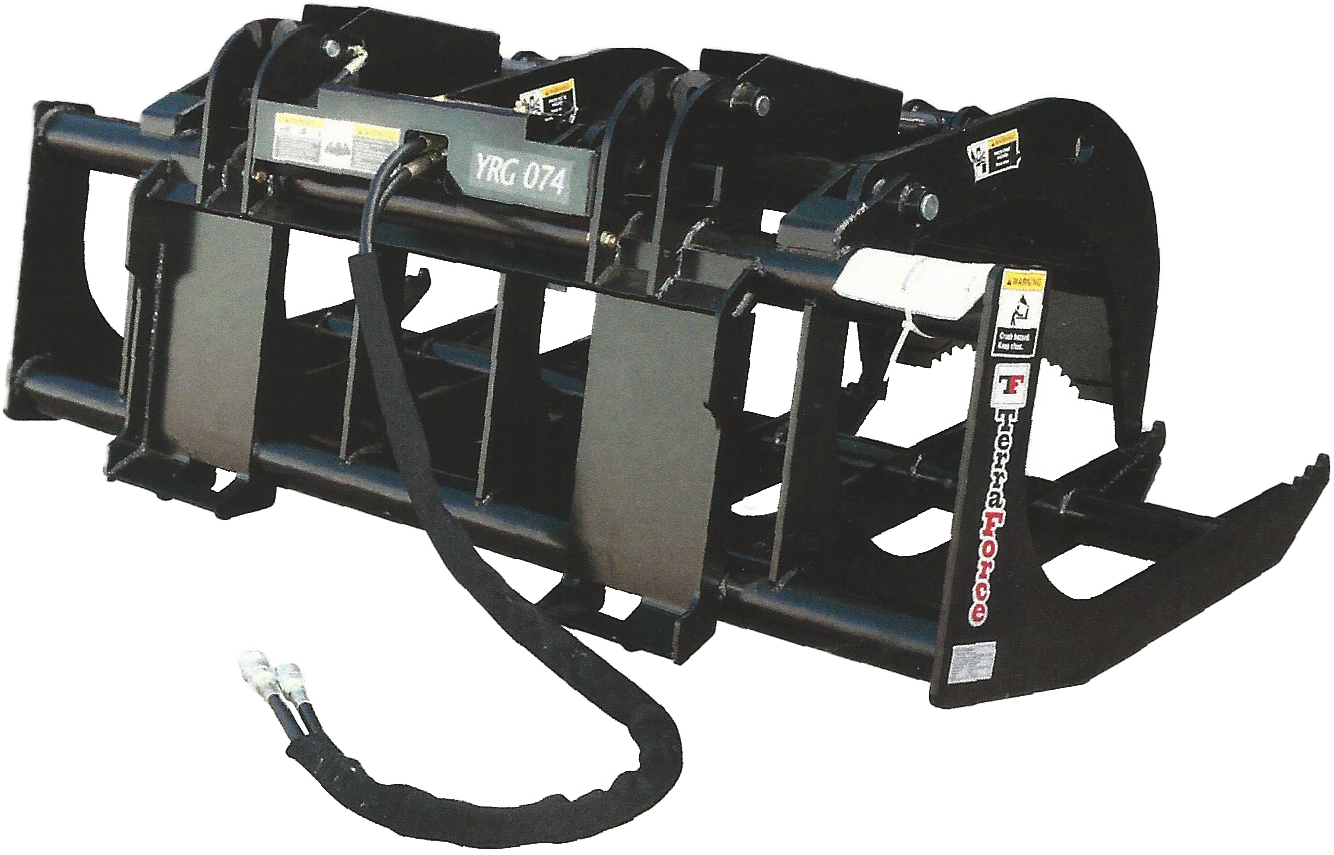

| Model | YRG 074 | YRG 074E |
|---|---|---|
| Overall Width(A) | 73 | 73 |
| Overall Depth(B) | 39.8 | 39.8 |
| Overall Height(C) -Grapple Closed | 29.3 | 29.3 |
| Overall Height(E) -Grapple opened | 49.6 | 49.6 |
| Max. Tooth Opening(D) | 46.7 | 46.7 |
| Number of Teeth | 8 | 8 |
| Cylinders | 2Pcs | 2Pcs |
| Operating Weight | 919Ibs | 919Ibs |
※ Specifications, designs and dimensions are subject to change without prior notice
