서브페이지 헤더영역 - PALLET FORK MODEL

YOUNGJIN ROTARY

PRODUCT

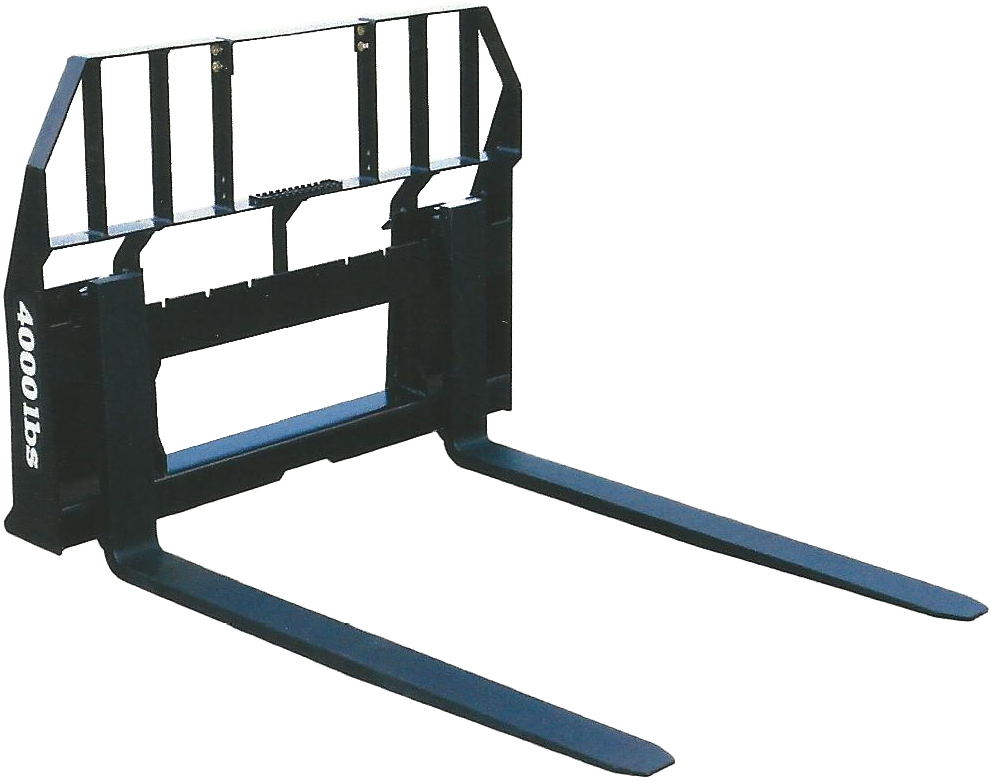

Work performance comparable to that of a forklift

Feature of product
FEATURES
  • Skid steer quick attach system
  • Spear capacity : 4,000 lbs at 23-1/2“from frame
  • 42-1/2“usable spear length
  • Spear size : 1.78“00 X 49-1/4” Bale open with nut
  • Replaceable forged spear
Specification
PALLET FORK MODEL SPECIFICATIONS
Model Fork Length(in) Fork Size(in) Fork Lift Capacity (lbs) Weigth (lbs) Remark
PF-46C 48 4 X 1 - 1/4 4,000 400 SKID Steer Type
PF-46B 48 4 X 1 - 1/4 4,000 400 Euro Hitch Type
PF-200 42 4 X 1 - 1/4 2000 286 Compact Skid Steer Type

※ Specifications, designs and dimensions are subject to change without prior notice
