Hard and robust work performance

Feature of product
FEATURES
  • Skid steer loader and agricultural tractor loader : 51-150 horse power
  • Bottom times : 1/2“steel
  • Lid times : 3/4“steel
  • Maximum grapple clamping force : 3,000lbs@2,000psi
  • Flat base 1/2“quick coupler
Specification
Units : Inch, Lbs, Ea

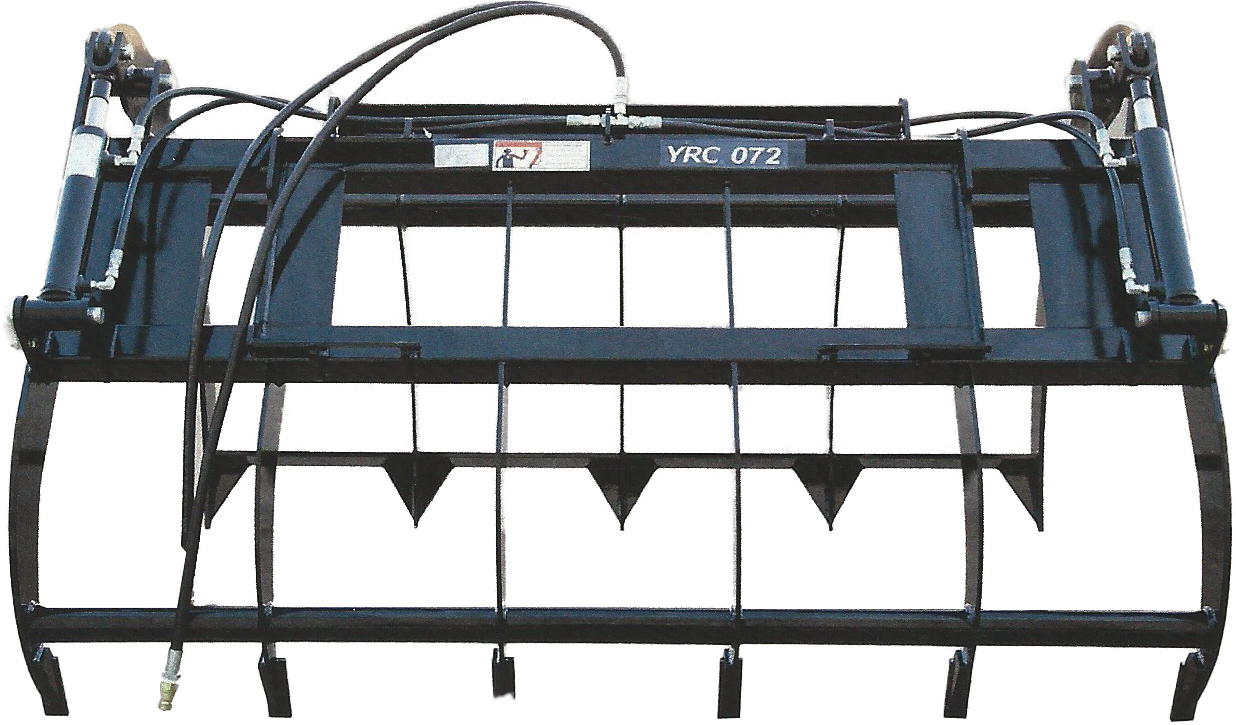

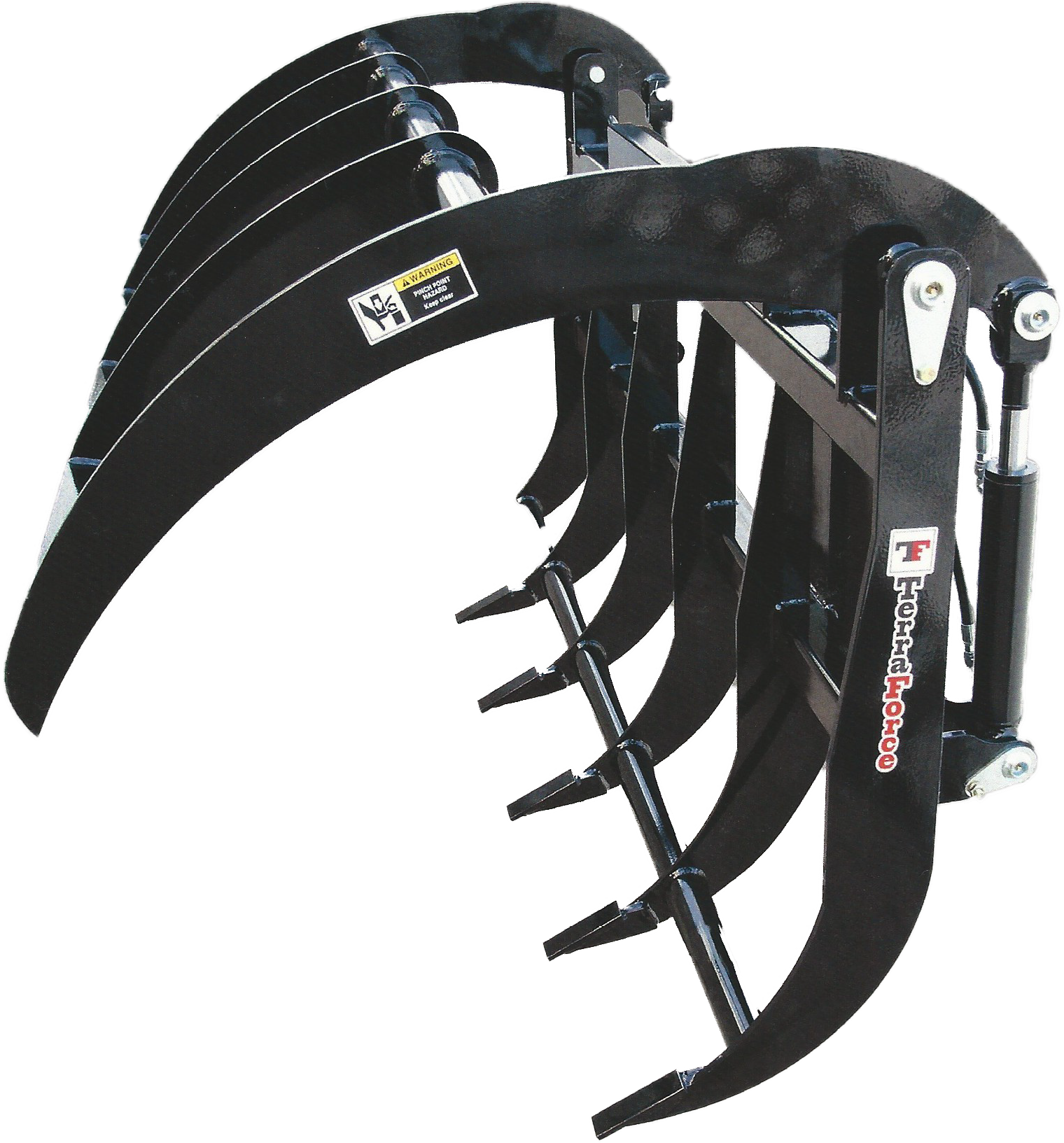

ROOT GRAPPLE YRC 064 / YRC 072 MODEL SPECIFICATIONS
Model YRC 064 YRC 072
SPECIFICATIONS 64 72
A. Grapple Width 59.1 68.2
B. Rake Width 64.5 73.7
C. Overall Height 44.8 44.8
D. Grapple Opening 54.6 54.6
E. Tooth Positions 22.4 22.4
F. Overall Length 22.8 22.8
Weifht 446Ibs 495Ibs
Tine Spacing 15.75 14.5
#of Tines 9 11

※ Specifications, designs and dimensions are subject to change without prior notice
