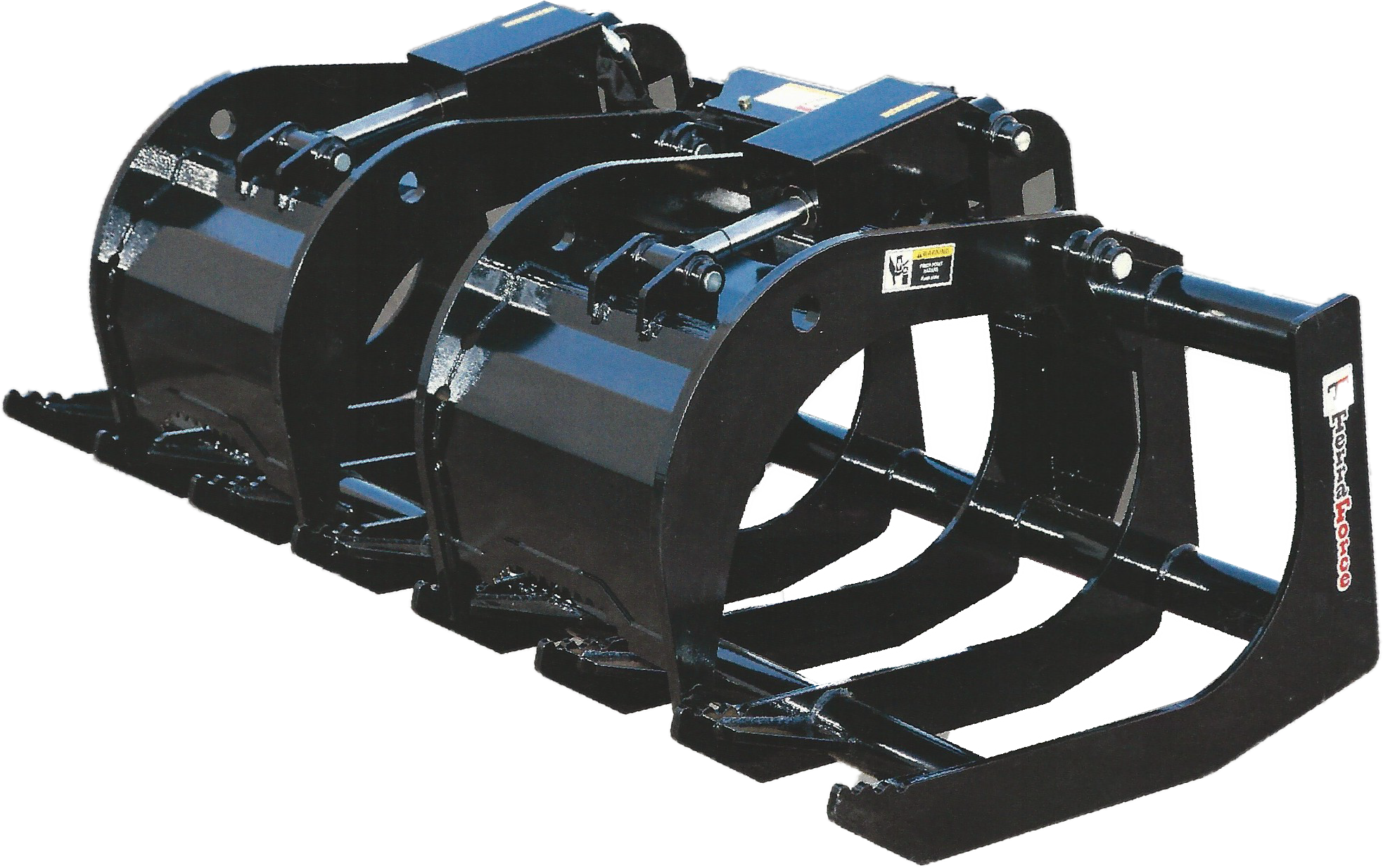

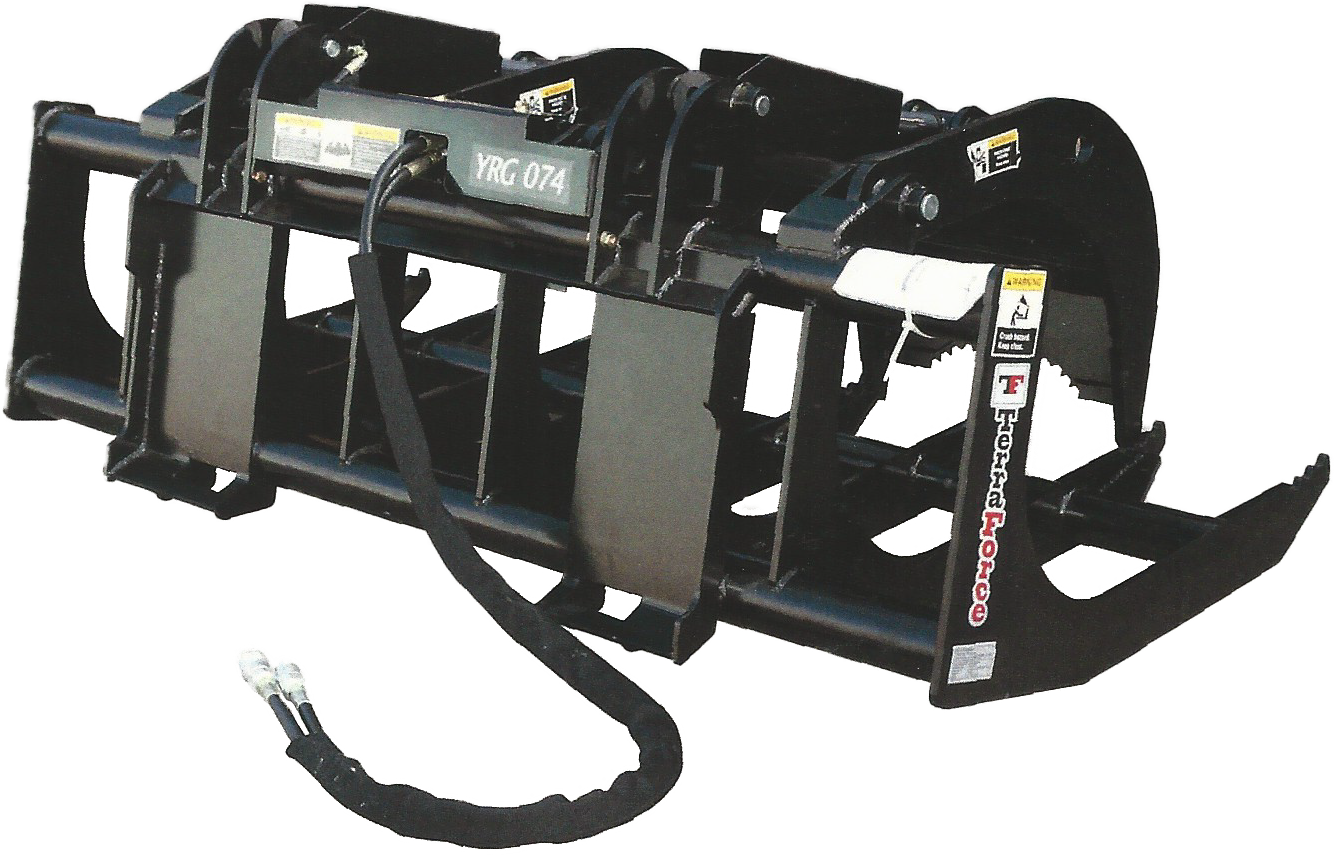

서브페이지 헤더영역 - ROOT GRAPPLE YRG 074 / YRG 074E MODEL

YOUNGJIN ROTARY

PRODUCT

Hard and robust work performance

Feature of product
  • Skid steer loader and agricultural tractor loader : 51-150 horse power
  • Bottom times : 1/2“steel
  • Lid times : 3/4“steel
  • Maximum grapple clamping force : 3,000lbs@2,000psi
  • Flat base 1/2“quick coupler
Specification
Units : Inch, Lbs, Ea
ROOT GRAPPLE YRG 074 / YRG 074E MODEL SPECIFICATIONS
Model YRG 074 YRG 074E
Overall Width(A) 73 73
Overall Depth(B) 39.8 39.8
Overall Height(C) -Grapple Closed 29.3 29.3
Overall Height(E) -Grapple opened 49.6 49.6
Max. Tooth Opening(D) 46.7 46.7
Number of Teeth 8 8
Cylinders 2Pcs 2Pcs
Operating Weight 919Ibs 919Ibs

※ Specifications, designs and dimensions are subject to change without prior notice
